15188-4R BSF

Name: 15188-4R BSF
Brand: Bussmann
SKU: 15188-4R BSF
Availability: OutOfStock

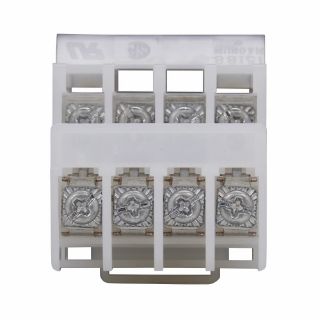

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

15188-4R

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 24 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Depluggable Reverse Wiring

Description

Bussmann Disconnect Terminal Block, Depluggable Reverse Wiring, Series: 15188, 600 V, 30 A, 4 Pole, 16 to 12 AWG Copper Wire, Tin Plated Copper Alloy Terminal, 3/8 in Spacing, 12 in-lb Torque, DIN Rail Mounting, #6-32 Screw Connection, 105 deg C, Copper/Steel/Thermoplastic, White, 1.56 in W x 1.94 in H Dimensions

Application

Stationary Machine Equipment in Factory - Robotics

Standards

CSA File No. 47235 | RoHS Compliant | UL 94-V-2 Flammability Rating | UL File No. E62622

Features

These depluggable terminal blocks provide a simple depluggable option for panel wiring applications with the convenience of quick, easy, snap-on installation
#6-32 TPI zinc plated steel Phillips slot screw

Specifications

Amperage Rating:	30 A
Color:	White
Connection Type:	#6-32 Screw
Country of Origin:	MX
Dimensions:	1.56 in W x 1.94 in H
Material:	Copper/Steel/Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	4
Series:	15188
Spacing:	3/8 in
Temperature Rating:	105 deg C
Terminal Type:	Tin Plated Copper Alloy
Torque Rating:	12 in-lb
Voltage Rating:	600 V
Wire Size:	16 to 12 AWG Copper
