1547 WOO

Name: 1547 WOO
Brand: Molex/Woodhead
SKU: 1547 WOO
Price: 37.46 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

1547

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$37.46 / EA

Description

Brand Name

Woodhead®

Type

Heavy Duty

Description

Woodhead® Super-Safeway® products are heavy duty industrial-wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEoTEX® paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.

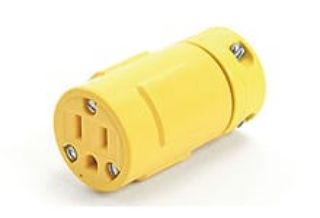

Woodhead® Super-Safeway® Straight Blade Connector, Heavy Duty, Series: 130141, 125 VAC, 50 A, 2 Pole, 3 Wires, NEMA 5-15R Rating, Industrial Grade, IP67 Enclosure, 0.335 to 0.64 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, NEoTEX® Rubber, Yellow

Application

For industrial applications

Standards

RoHS Compliant | UL File No. E10176 | CSA File No. LR6837

Features

NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
Nickel plated brass plug blades and connector contacts, nylon Safeway® outer housing, stainless steel face screws, nylon face insert, brass wire saddle clamp, steel, zinc plated cord clamp screws
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise

Specifications

Amperage Rating:	50 A
Color:	Yellow
Cord Diameter:	0.335 to 0.64 in
Country of Origin:	MX
Enclosure:	IP67
Grade:	Industrial
Material:	NEoTEX® Rubber
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Series:	130141
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Threaded
Voltage Rating:	125 VAC
