154VJ-BK MOR

With the reducer in an upright position (worm vertical), output shaft horizontal, align the base holes with the tapped holes on the side of the reducer housing. Insert the bolts from the kit into the lock washers. Thread into the housing tapped holes and tighten to suggested tightening torque.

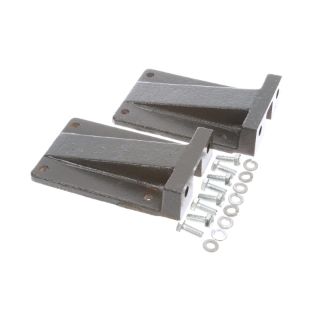

Morse® Vertical J-Base Kit, For Use With: Raider® Plus Styles UVJ/QVJ/CVJ/UHVJ/QHVJ/CHVJ 1.54 in Center Distance Worm Gear Reducers, Specifications: 0.44 in Dia Bolt, 2-3/4 in Bolt Center-to-Center Length, 1/4 in THK Base, Cast Iron, 3.5 in L x 1.38 in W x 2 in H
