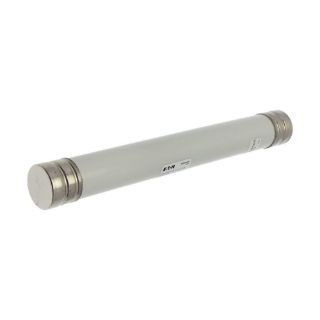

Actual Product May Vary From Image

15.5CAV5E BSF

Name: 15.5CAV5E BSF
Brand: Bussmann
SKU: 15.5CAV5E BSF
Availability: OutOfStock

Bussmann 15.5CAV5E CAV British Style Potential Transformer Fuse, 5 A, 15.5 kV, 80 kA Interrupt, Class: E, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 15.5CAV5E

Availability: Expected Leadtime 32 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Style

Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Bussmann Potential Transformer Fuse, British Style, Series: CAV, Non-Indicating, 5 A, 15.5 kV, 80 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, Cartridge Body, 1.63 in Dia x 12.87 in L Body

Application

Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Small Medium Voltage Control Transformers

Standards

IEEE/ANSI C37.46

Features

PT fuses are physically dimensioned for easy installation in existing hardware
Space saving size eases design considerations for new installations
Current limiting fuses provide positive interruption even on low fault currents
The fuse limits the magnitude of electromechanical stresses in the protected apparatus
These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure

Specifications

Amperage Rating:	5 A
Body Size:	1.63 in Dia x 12.87 in L
Body Type:	Cartridge
Class:	E
Country of Origin:	GB
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	80 kA
Mounting Type:	Bolted-On
Series:	CAV
Terminal Type:	Ferrule
Voltage Rating:	15.5 kV
