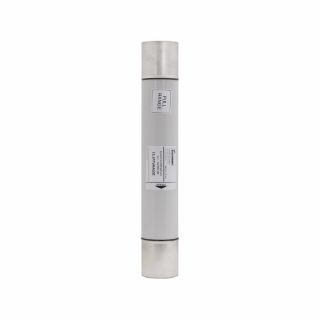

Actual Product May Vary From Image

15.5FFVHK100E BSF

Name: 15.5FFVHK100E BSF
Brand: Bussmann
SKU: 15.5FFVHK100E BSF
Availability: OutOfStock

Bussmann 15.5FFVHK100E 2-Barrel Full Range Non-Indicating E-Rated Fuse Link, 1550 VAC, 100 A, For Use With Transformers and Feeder, Resin

Manufacturer: Bussmann

Manufacturer part number: 15.5FFVHK100E

Availability: Expected Leadtime 82 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

2-Barrel Full Range Non-Indicating

Description

Bussmann E-Rated Fuse Link, 2-Barrel Full Range Non-Indicating, 1550 VAC, 100 A, Rated Breaking Capacity: 50 kA, Ferrule Mount, For Use With: Transformers and Feeder, Resin, 3 in Dia x 18-3/4 in L

Application

Medium Voltage Primary Transformer and Feeder Circuit Protection Applications

Standards

ANSI C37.46

Features

E-rated power fuse links having full range clearing capability for medium voltage transformer circuit protection
Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained

Specifications

Amperage Rating:	100 A
Country of Origin:	GB
Dimensions:	3 in Dia x 18-3/4 in L
Material:	Resin
Mounting Type:	Ferrule
Rated Breaking Capacity:	50 kA
Suitable For Use With:	Transformers and Feeder
Voltage Rating:	1550 VAC
