15602-04/16-20 BSF

Name: 15602-04/16-20 BSF
Brand: Bussmann
SKU: 15602-04/16-20 BSF
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

15602-04/16-20

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 48 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Blade

Description

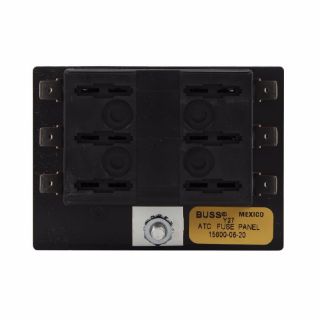

The 15600 ATC® fuse panel is a compact, yet rugged, power distribution module. It is available in a single or dual internal buss electrical configuration featuring an optional ground pad terminal strip. The 15600 fuse panel is surface mounted, uses convenient quick connect terminals and is recommended as a supplemental power distribution module. It can be used to accompany main PDMs such as the Cooper Bussmann 31000/32000 series VEC/DVEC, 15710 series RTA and the 1540X Series RFRM.

Bussmann Fuse Panel, Blade, Series: 15600 ATC®, 30 A, Quick Connect/Double Stud, 16 to 12 AWG Wire, Surface Mount, -20 to 150 deg F, For Use With: Cooper Bussmann 31000/32000 Series VEC/DVEC, 15710 Series RTA and 1540X Series Rear Fed Fuse and Relay Module (RFRM), Thermoplastic, Black, 3.37 in L x 2.47 in W x 0.83 in H

Features

Four circuit breaker positions on right side, sixteen circuit breaker positions on left side, nuts assembled, no ground pad terminal

Specifications

Amperage Rating:	30 A
Color:	Black
Connection Type:	Quick Connect/Double Stud
Country of Origin:	MX
Dimensions:	3.37 in L x 2.47 in W x 0.83 in H
Material:	Thermoplastic
Mounting Type:	Surface
Series:	15600 ATC®
Suitable For Use With:	Cooper Bussmann 31000/32000 Series VEC/DVEC, 15710 Series RTA and 1540X Series Rear Fed Fuse and Relay Module (RFRM)
Temperature Rating:	-20 to 150 deg F
Wire Size:	16 to 12 AWG
