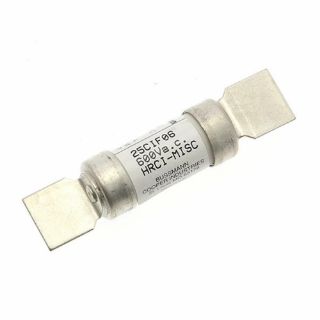

Actual Product May Vary From Image

15CIF06 BSF

Name: 15CIF06 BSF
Brand: Bussmann
SKU: 15CIF06 BSF
Availability: OutOfStock

Bussmann 15CIF06 British Style HRCI-CB Industrial Low Voltage Non-Indicating Fuse, 15 A, 600 VAC/250 VDC, 200 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 15CIF06

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Style HRCI-CB Industrial Low Voltage Non-Indicating

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse, British Style HRCI-CB Industrial Low Voltage Non-Indicating, Series: CIF06, 15 A, 600 VAC/250 VDC, 200 kA Interrupt, 50 Hz, Clip-In Mount, Ceramic, 0.54 in Dia x 2.38 in L Body Size

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Overload and Short Circuit Protection, Safety and Security Systems

Standards

CE Certified | CSA C22.2 No. 106 M92 | RoHS Compliant

Features

Close sizing to loads allows using smaller and less costly switches
Provides a higher degree of short circuit protection
Helps protect motors against burnout from overloads
CIF06 fits the 30 A SafeLOC fuse holder

Specifications

Amperage Rating:	15 A
Body Size:	0.54 in Dia x 2.38 in L
Country of Origin:	HU
Frequency Rating:	50 Hz
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Clip-In
Series:	CIF06
Voltage Rating:	600 VAC
