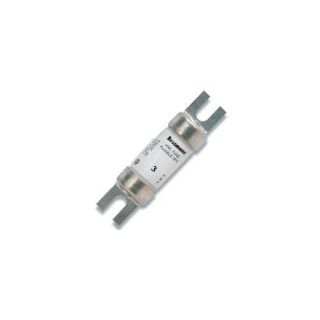

Actual Product May Vary From Image

15CIF21 BSF

Name: 15CIF21 BSF
Brand: Bussmann
SKU: 15CIF21 BSF
Availability: OutOfStock

Bussmann 15CIF21 Canadian Non-Indicating Specialty Fuse, 15 A, 600 VAC, 200 A Interrupt, Cartridge Blade Body

Manufacturer: Bussmann

Manufacturer part number: 15CIF21

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Canadian Non-Indicating

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Specialty Fuse, Canadian Non-Indicating, 15 A, 600 VAC, 200 A Interrupt, Bolted-Down Terminal, Stud Mounting, Cartridge Blade Body

Application

For use in circuits subject to surge currents such as those caused by motors, transformers and other inductive loads

Standards

CE Certified | CSA C22.2 No. 106-M92

Features

Close sizing to loads allows using smaller and less costly switches
Provides a higher degree of short circuit protection
Helps protect motors against burnout from overloads

Specifications

Amperage Rating:	15 A
Body Size:	0.54 in Dia x 2.15 in L
Body Type:	Cartridge
Country of Origin:	GB
Element:	Dual
Interrupt Rating:	200 A
Material:	Ceramic
Mounting Type:	Bolted-On
Series:	CIF21
Terminal Type:	Bolted-Down
Voltage Rating:	600 VAC
