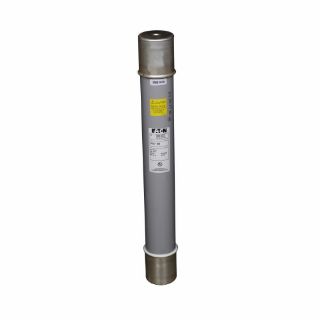

Actual Product May Vary From Image

15CLE-125E BSF

Name: 15CLE-125E BSF
Brand: Bussmann
SKU: 15CLE-125E BSF
Availability: OutOfStock

Bussmann 15CLE-125E CLE Helix Medium Voltage Current Limiting Fuse, 125 A, 15.5 kV, 63 kA Interrupt, Class: E

Manufacturer: Bussmann

Manufacturer part number: 15CLE-125E

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Helix Medium Voltage

Description

Eaton Helix fuses (CLE) are general purpose fuses suitable for indoor and outdoor use. They provide high and low level fault protection. Typical uses include transformers, power centers, load interrupters, feeders and unit substations.

Bussmann Current Limiting Fuse, Helix Medium Voltage, Series: CLE, 125 A, 15.5 kV, 63 kA Interrupt, Class: E, 50/60 Hz Frequency, 3 in Dia x 23.9 in L Body

Application

Transformer Primary Protection, Feeder Circuit Protection, Switches, Metal Enclosed Switchgear and Indoor/Outdoor Applications

Standards

ANSI C37.46 | UL JEEG | UL File No. E240398 | IEEE C37.41

Features

Current limiting E-rated medium voltage fuses are defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E-rating
They are physically dimensioned for easy installation in existing hardware to provide positive interruption even on low fault currents
Current limiting fuses provide positive interruption even on low fault currents
The fuse limits the magnitude of electromechanical stresses in the protected apparatus
Single barrel
20 in clip center
15.5 kV maximum/14.4 kV nominal voltage rating

Specifications

Amperage Rating:	125 A
Body Size:	3 in Dia x 23.9 in L
Class:	E
Country of Origin:	DO
Frequency Rating:	50/60 Hz
Interrupt Rating:	63 kA
Series:	CLE
Voltage Rating:	15.5 kV
