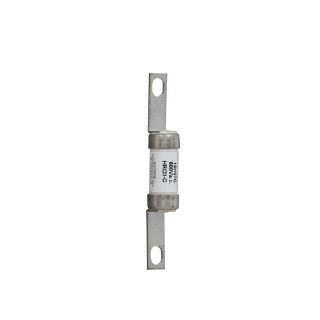

Actual Product May Vary From Image

15H07C BSF

Name: 15H07C BSF
Brand: Bussmann
SKU: 15H07C BSF
Availability: OutOfStock

Bussmann 15H07C Current Limiting Fuse, 15 A, 550 VAC, 200 kA Interrupt, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 15H07C

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

HRC Form II Canadian Current Limiting Industrial

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Current Limiting Fuse, 15 A, 550 VAC, 200 kA Interrupt, Blade Terminal, Bolted-In Mounting, Cartridge Body, Ceramic, 0.56 in Dia x 3.38 in L Body

Application

Industrial Facilities and Factories

Standards

CE Certified | CSA C22.2 No. 106M1992 | BS 88:2 | IEC 60269:2 | IEC 60947-4

Specifications

Amperage Rating:	15 A
Body Size:	0.56 in Dia x 3.38 in L
Body Type:	Cartridge
Country of Origin:	GB
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Bolted-In
Series:	H07C
Terminal Type:	Blade
Voltage Rating:	550 VAC
