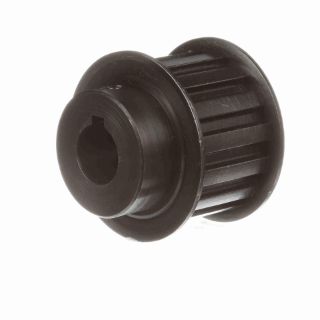

Picture of 15LF100X5/8 BRN
Actual Product May Vary From Image

15LF100X5/8 BRN

Browning® Gearbelt® 1054758 Type 1 Synchronous Timing Pulley With Flange, 5/8 in Finished Bore, 1.76 in OD, 15 Grooves, 1.79 in Dia Pitch, 1-1/4 in W Face
Manufacturer: Regal Rexnord
Manufacturer part number: 1054758
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
Loading...
$98.38

Product Details

Brand Name

Browning®

Type

Type 1

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
Browning® Gearbelt® Synchronous Timing Pulley, Type 1, Finished Bore, 5/8 in Bore Dia, 1.76 in Outside Dia, 1.79 in, 15 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, 2-1/16 in Flange Dia, 1-11/32 in Hub Dia, 1/2 in Hub Projection, 1-3/4 in Overall Length, For Use With: 1 in W Type L100 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

  • High modulus strength member, needs minimum take-up
  • Freedom from initial belt tension, reduces bearing loads, increases life
  • Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
  • Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
  • Less heat, because Gearbelt® drives generate virtually no friction
  • No lubrication required
  • Wide load capacity range
  • Wide belt speed range
  • Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
  • Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore

Specifications

Bore Diameter:5/8 in
Bore Type:Finished
Country of Origin:US
Face Width:1-1/4 in
Flange Diameter:2-1/16 in
Hub Diameter:1-11/32 in
Hub Projection:1/2 in
Number of Grooves:15
Outside Diameter:1.76 in
Overall Length:1-3/4 in
Pitch:3/8 in
Pitch Diameter:1.79 in
Suitable For Use With:1 in W Type L100 Belt
