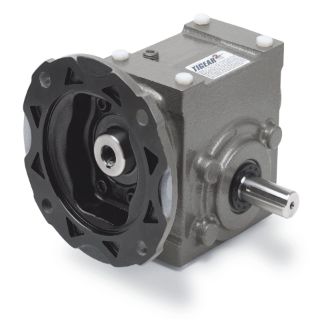

Actual Product May Vary From Image

15QZ20R56 DOD

Name: 15QZ20R56 DOD
Brand: Dodge
SKU: 15QZ20R56 DOD
Price: 1,121.13 USD
Availability: OutOfStock

TIGEAR-2 E-Z KLEEN REDUCER

Manufacturer: Dodge

Manufacturer part number: 15QZ20R56

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,121.13

Qty:

Product Details

Base to Output Center Height:	1.8700
Base to Output Center Height (Unit):	INCH
Case Size:	15
Center Distance:	1.5000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	4.3100
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	0.7000
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.5600
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:	3.5000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.2500
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	20.0000
Output Shaft:	Right (Solid B)
Output Shaft Center to Input Motor Mounting Face Distance:	4.4000
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Right
Overhung Load:	710
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Stainless Epoxy
Rated Torque Output:	407
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Two-Piece Harsh Duty
Shaft Diameter Output:	0.7500
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	2.2300
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	Yes
Thermal Horsepower Rating:	1.2600
Thermal Horsepower Rating (Unit):	HORSEPOWER
