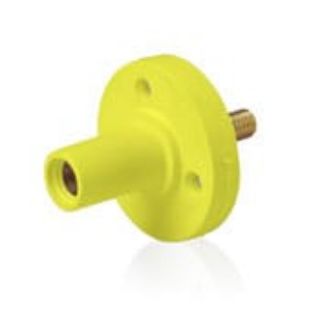

Actual Product May Vary From Image

15R22-Y LEV

Name: 15R22-Y LEV
Brand: Leviton Manufacturing
SKU: 15R22-Y LEV
Availability: OutOfStock

Leviton® 15R22-Y 15 Series Cam Type Female Taper Nose Single Pole Receptacle, 600 VAC, 140 A, 8 to 4 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 15R22-Y

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam Type Female Taper Nose

Description

The 15 series taper nose mini-cam plugs, receptacles and connectors are tough and reliable. Primary applications include carnivals and theme parks, as well as the entertainment industry.

Leviton® Single Pole Receptacle, Cam Type Female Taper Nose, Series: 15 Series, 600 VAC, 140 A, 8 to 4 AWG Wire, Threaded/Stud, Brass Contact, TPV Housing, NEMA 3R, Panel Mount, Yellow, 1.86 in Dia x 2.63 in L

Application

Commercial and Industrial Applications

Standards

CSA File No. 152105 | UL File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Locking and reinforcing ring won't melt, break or crack
Shatter and crack proof high durometer thermoplastic elastomer or neoprene rubber
Color coded insulating sleeves for fast and easy phase identification
Self compensating for wear - slit and cam in male contact provides spring action for longer usage
Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
High conductivity positive, vibration proof connection provided by double cam design
Usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	140 A
Color:	Yellow
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.86 in Dia x 2.63 in L
Housing Material:	TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	15 Series
Voltage Rating:	600 VAC
Wire Size:	8 to 4 AWG
