15W49 WOO

Name: 15W49 WOO
Brand: Molex/Woodhead
SKU: 15W49 WOO
Price: 60.64 USD
Availability: OutOfStock

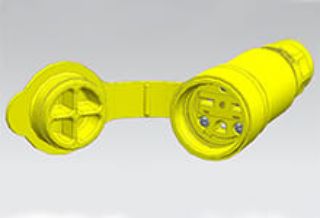

Woodhead® Watertite® Extreme 15W49 130146 Female Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 15W49

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$60.64

Qty:

Product Details

Brand Name

Woodhead®

Description

Woodhead® Watertight® wet location wiring devices are rated for high pressure hosedown application up to 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression-type cord grips that provide high pullout strength; and a protective closure cap that seals the connector when it is not in use. Woodhead® watertight Watertight® products are time tested devices that professionals demand.

Woodhead® Watertite® Extreme Female Connector, Series: 130146, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15, IP67/IP69K Enclosure, 1/8 to 3/16 in Cord Dia, -40 to 75 deg C, Screw/Wire Terminal, Silicone, Yellow

Application

Breweries, Dairies, Food and Beverage, Wastewater Treatment and Wet Location Applications

Standards

CSA File No. LR6837 | NSF/ANSI/3-A 14159-1 | UL File No. E10176

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screws pre-set in open position ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screwdrivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seals cord without damaging the cord
F2 body 1/2 in cable grip
Nickel plated brass plug blades and connector contacts
NEoTEX® paracril OZO rubber outer housing and grommet
Stainless steel face screws
Nylon face insert
Brass wire saddle clamp
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
Lexan receptacle cover plate and closure caps
Single receptacle

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	1/8 to 3/16 in
Country of Origin:	MX
Enclosure:	IP67/IP69K
Material:	Silicone
NEMA Rating:	NEMA 6-15
Number of Poles:	2
Number of Wires:	3
Series:	130146
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	250 VAC
