16017 NAC

Product Details

Manufacturer:
Manufacturer part number:
16017
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Type

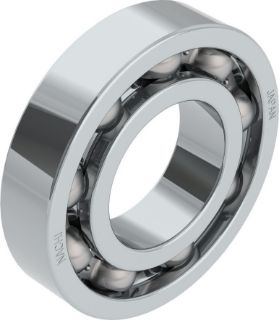

Deep Groove Ball Bearing

Description

Single Row Deep Groove Ball Bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. - Excellent High Speed Capability - Good Radial Load Capacity - Good Axial Load Capacity in both directions - Low Torque Requirements during startup and operation - Low Noise - Little/No Maintenance Required

Specifications

Bore (mm):85
Boundary Dimensions (mm):(85x130x14)
Configuration:Open Bearing
Dynamic Load Capacity Cr (N):31500
Limiting Speed - Grease (rpm):5000
Limiting Speed - Oil (rpm):6000
Outside Diameter (mm):130
Static Load Capacity Cor (N):29800
Weight (lbs):1.3772
Width (mm):14

Products Specifications

Bore Size
85 mm
Brand Name
Nachi
Outside Diameter
130 mm
Width
14 mm
