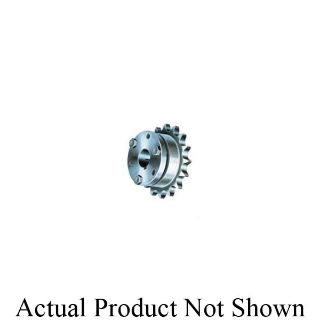

Actual Product May Vary From Image

160M40 BRN

Name: 160M40 BRN
Brand: Regal Rexnord
SKU: 160M40 BRN
Availability: OutOfStock

Browning® 3332939 Single Strand Roller Chain Sprocket, 2 in Dia Bore, 26-5/8 in OD, #160 Chain, 40 Teeth, 2 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3332939

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 2 in Bore Dia, 26-5/8 in Outside Dia, #160 Chain, 40 Teeth, 2 in Pitch, 25.491 in, 9 in Hub Dia, 6.76 in Length Through Bore, Type QD®-1 Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Reverse mounting possible
For use with 2 in pitch ANSI chain

Specifications

Bore Diameter:	2 in
Bushing Type:	Type QD®-1
Chain Size:	#160
Country of Origin:	CN
Hub Diameter:	9 in
Length Through Bore:	6.76 in
Material:	Steel
Number of Teeth:	40
Outside Diameter:	26-5/8 in
Pitch:	2 in
Pitch Diameter:	25.491 in
