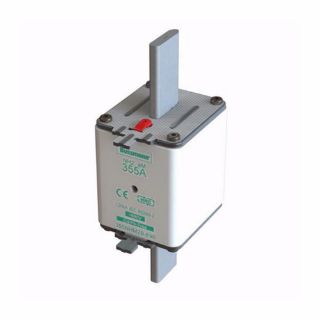

Actual Product May Vary From Image

160NHM2B-690 BSF

Name: 160NHM2B-690 BSF
Brand: Bussmann
SKU: 160NHM2B-690 BSF
Availability: OutOfStock

Bussmann 160NHM2B-690 Dual Indicator Low Voltage Size 2 NH Fuse Link, 690 V, 160 A, For Use With Class C/aM/gG/gL Fuse

Manufacturer: Bussmann

Manufacturer part number: 160NHM2B-690

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Dual Indicator Low Voltage Size 2

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2, Series: NHM, 690 V, 160 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, For Use With: Class C/aM/gG/gL Fuse

Application

Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems

Standards

RoHS Compliant

Specifications

Amperage Rating:	160 A
Country of Origin:	IN
Frequency Rating:	45 to 62 Hz
Rated Breaking Capacity:	120 kAIC
Series:	NHM
Suitable For Use With:	Class C/aM/gG/gL Fuse
Voltage Rating:	690 V
