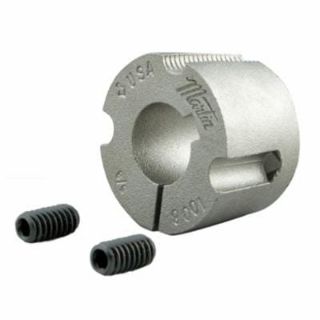

Picture of 1615 1 3/8 MSG
Actual Product May Vary From Image

1615 1 3/8 MSG

Martin 1615 1 3/8 Standard Taper Lock Bushing, 1-3/8 in Dia Bore, 2-1/4 in Dia Barrel, 1-1/2 in OAL, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 1615 1 3/8
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CBT - LOUISVILLE
0 0
Loading...
$25.68

Product Details

Brand Name

Martin

Type

Standard

Description

Martin Taper Lock Bushing, Standard, 1-3/8 in Bore Dia, 2-1/4 in Barrel Dia, 3 in Hub Dia, 8 deg Taper, 2-1/8 in Bolt Circle, 2 Bolt Holes, 3/8-16 x 5/8 in Screw, 4300 in-lb, 1-1/2 in Overall Length, 5/16 x 5/32 in Keyway, Steel

Standards

ANSI B15.1

Features

  • Size 1615 bushing
  • TB Bushings are designed for flush mounting and do not have a flange
  • Tolerances meet or exceed industry standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ taper bushings

Specifications

Barrel Diameter:2-1/4 in
Bolt Circle Diameter:2-1/8 in
Bore Diameter:1-3/8 in
Country of Origin:US
Hub Diameter:3 in
Keyway Size:5/16 x 5/32 in
Material:Steel
Number of Bolt Holes:2
Overall Length:1-1/2 in
Screw Size:3/8-16 x 5/8 in
Taper:8 deg
Torque Rating:4300 in-lb
