16252-2P LEV

Name: 16252-2P LEV
Brand: Leviton Manufacturing
SKU: 16252-2P LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

16252-2P

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Heavy Duty Self Grounding

Description

Leviton® offers custom imprinting solutions to meet the 2014 national electrical code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All receptacles that are automatically controlled will be marked with a specific symbol.

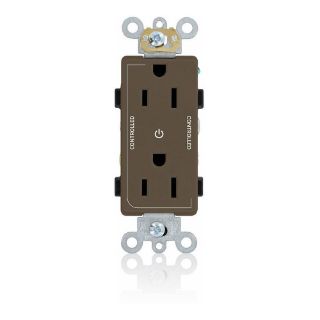

Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Brown, 3.81 in H x 1.71 in W x 1.07 in D Dimensions

Standards

ANSI C-73 | CSA C22.2 No. 42 | NOM-ANCE | UL 498

Features

Hot Terminal Split

Specifications

Amperage Rating:	15 A
Color:	Brown
Country of Origin:	MX
Dimensions:	3.81 in H x 1.71 in W x 1.07 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Commercial
Horsepower:	1/2 hp
Material:	PBT Polyester Blend
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
