16252-R LEV

Name: 16252-R LEV
Brand: Leviton Manufacturing
SKU: 16252-R LEV
Availability: OutOfStock

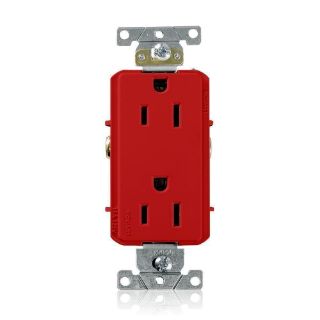

Decora® Plus 16252-R Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16252-R

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Heavy Duty Self Grounding

Description

Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. These Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Red, 4.06 in H x 1.52 in W x 1.14 in D Dimensions

Application

Commercial and Industrial Applications

Standards

UL 498 File No. E13399 Listed | ANSI (C-73) | CSA C22.2 No. 42 File No. LR-406, NOM (057), UL 94 Flammability Rated

Specifications

Amperage Rating:	15 A
Color:	Red
Country of Origin:	MX
Dimensions:	4.06 in H x 1.52 in W x 1.14 in D
Enclosure:	NEMA WD-6
Grade:	Commercial
Horsepower:	1/2 hp
Material:	PBT Polyester Blend
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
