16352-W LEV

Name: 16352-W LEV
Brand: Leviton Manufacturing
SKU: 16352-W LEV
Price: 16.29 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

16352-W

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$16.29 / EA

Description

Brand Name

Leviton®

Type

Heavy Duty Self Grounding

Alternate Supplier #

Grainger - 6LM98

Description

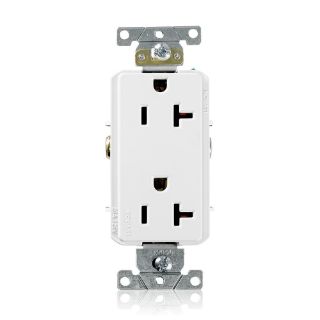

Leviton® 16352-W Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 4.06 in H x 1.31 in W x 1.14 in D Dimensions

Standards

ANSI C-73 | CSA C22.2 No. 42 File No. LR-406 | NOM 057 | UL 498 File No. E13399 | UL 94 Flammability Rating

Features

Back wire and side wire terminal options
Heavy gauge locked-in wraparound strap
Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
Brass staked on self-grounding clip
Heavy duty triple-wipe brass contacts for long service life
Impact-resistant thermoplastic construction

Specifications

Amperage Rating:	20 A
Color:	White
Country of Origin:	MX
Dimensions:	4.06 in H x 1.31 in W x 1.14 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Commercial
Horsepower:	1 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
