Home / 16362-IG LEV

16362-IG LEV

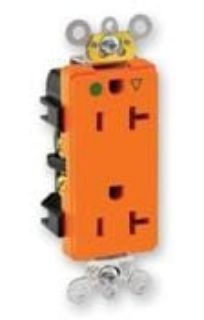

Picture of 16362-IG LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
16362-IG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

1-Phase Extra Heavy Duty Isolated Ground

Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Decora® Plus Straight Blade Duplex Receptacle, 1-Phase Extra Heavy Duty Isolated Ground, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Orange, 46 in H x 1.52 in W x 1.14 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 File No. 42 | CSA File No. 152105 | NOM 057 Certified | UL 498 | UL File No. E13399 | UL 94 Flammability Rated

Features

  • Durable thermoplastic face in an array of contemporary colors
  • Receptacles have a locked in mounting strap with a self-grounding clip riveted to the strap
  • Hospital grade Tamper-resistant receptacles include a unique shutter mechanism that opens easily for the insertion of 2 or 3-prong plugs while preventing entry by other small objects into either outlet slot
  • Hospital grade isolated ground receptacles protect sensitive electronic equipment and eliminate electromagnetic interference by providing a separate path to ground
  • Power Indication™ meets UL 498 hospital grade identification requirements

Specifications

Amperage Rating:20 A
Color:Orange
Country of Origin:MX
Dimensions:4.06 in H x 1.52 in W x 1.14 in D
Enclosure:NEMA WD-1/WD-6
Grade:Hospital
Horsepower:1 hp
Material:Nylon
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
