16370-3 BSF

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

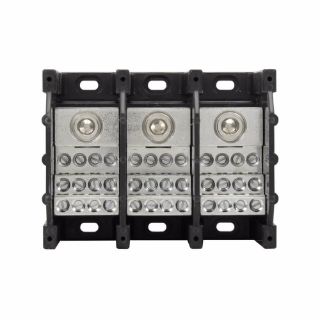

Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 3 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
