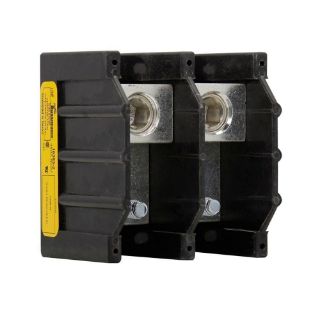

Actual Product May Vary From Image

16383-2-M BSF

Name: 16383-2-M BSF
Brand: Bussmann
SKU: 16383-2-M BSF
Availability: OutOfStock

Bussmann 16383-2-M Barrier Power Terminal Block, 600 VAC/VDC, 380 A, 2 Poles, 6 AWG to 500 kcmil Cu/Al Line Wire, Thermoplastic/Aluminum

Manufacturer: Bussmann

Manufacturer part number: 16383-2-M

Availability: Expected Leadtime 83 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.

Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 380 A, 2 Pole, (1) 3/8-16 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Thermoplastic/Aluminum, Black, 3.58 in L x 4 in W x 3.32 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA LR15364 File No. 53787 | RoHS Compliant | UL 508A/1059 File No. E221592 Guide XCFR2 | UL 94-V-0 Flammability Rating

Features

Rated for dual wire port application to increase the possible number of line side and load side connections
Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port

Specifications

Amperage Rating:	380 A
Color:	Black
Country of Origin:	MX
Dimensions:	3.58 in L x 4 in W x 3.32 in H
Material:	Thermoplastic/Aluminum
Number of Poles:	2
Secondary Connection/Pole:	(1) 3/8-16 x 1 in Stud
Series:	163
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	6 AWG to 500 kcmil Cu/Al Line
