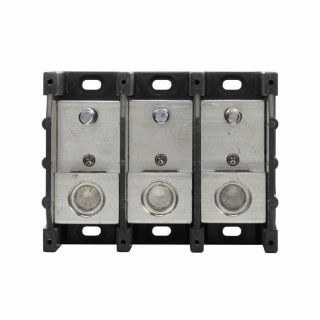

Picture of 16383-3 BSF
Actual Product May Vary From Image

16383-3 BSF

Bussmann 16383-3 Barrier Power Terminal Block, 600 VAC/VDC, 380 A, 3 Poles, 6 AWG to 500 kcmil Cu/Al Line Wire, Aluminum/Thermoplastic
Manufacturer: Bussmann
Manufacturer part number: 16383-3
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$479.79

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).
Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 380 A, 3 Pole, 1 Primary Connections/Pole, (1) 3/8-16 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA 6228-01/53787 | RoHS Compliant | UL File No. E221592/1059 | UL Guide XCFR2

Features

6 AWG to 500 kcmil copper/aluminum line, 3/8-16 x 1 in stud load connection

Specifications

Amperage Rating:380 A
Color:Black
Country of Origin:MX
Dimensions:5.21 in L x 4 in W x 3.32 in H
Finish:Tin Plated
Material:Aluminum/Thermoplastic
Number of Poles:3
Primary Connections/Pole:1
Secondary Connection/Pole:(1) 3/8-16 x 1 in Stud
Series:163
Short Circuit Current Rating:10 kA
Voltage Rating:600 VAC/VDC
Wire Size:6 AWG to 500 kcmil
