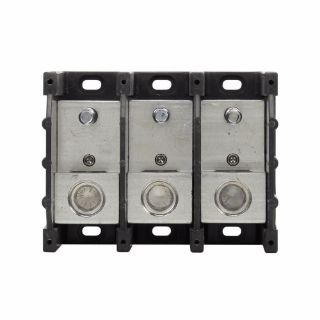

Actual Product May Vary From Image

16383-3-M BSF

Name: 16383-3-M BSF
Brand: Bussmann
SKU: 16383-3-M BSF
Availability: OutOfStock

Bussmann Magnum® 16383-3-M Power Terminal Block, 600 VAC/VDC, 380 A, 3 Poles, 6 AWG to 500 kcmil Cu/Al Line/Load Wire, Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16383-3-M

Availability: Expected Leadtime 83 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Description

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

Bussmann Magnum® Power Terminal Block, Series: 163, 600 VAC/VDC, 380 A, 3 Pole, (1) Screw Primary Connections/Pole, (1) 3/8-16 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 5.21 in L x 4 in W x 3.32 in H

Application

Power Distribution, Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA 53787 Guide XCFR2 | RoHS Compliant | UL 1059 File No. E221592

Features

Rated for dual wire port application to increase the possible number of line side and load side connections
Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
Molded thermoplastic base, tin plated aluminum connector
SMD/SMT style mounting

Specifications

Amperage Rating:	380 A
Color:	Black
Country of Origin:	MX
Dimensions:	5.21 in L x 4 in W x 3.32 in H
Material:	Thermoplastic
Number of Poles:	3
Primary Connections/Pole:	(1) Screw
Secondary Connection/Pole:	(1) 3/8-16 x 1 in Stud
Series:	163
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	6 AWG to 500 kcmil Cu/Al Line/Load
