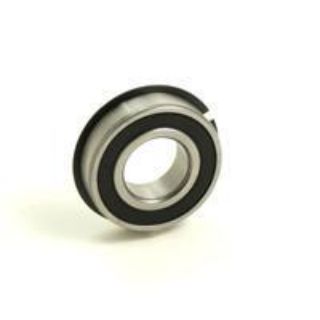

1641 2RSNR PRX/Q BLT

Product Details

Manufacturer:
Manufacturer part number:
1641 2RSNR PRX/Q
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

TRITAN®

Type

Standard

Description

1600 Series bearings are Single Row Radial Bearings that are available in inch sizes for shafts from 1/4 to 1-1/2 in. The series was originally produced as semi ground, but is now supplied as a fully ground precision. The series is produced either shielded or sealed and lubricated for life with a high quality polyRex EM grease.
TRITAN® Radial Deep Groove Ball Bearing, Standard, Series: 1600 Series, 1 in Bore, 2 in OD, 1 Rows, 9/16 in Width, Double Seal Closure, 3150 lb Load, 52100 Steel Bearing, Steel Cage, 7500 rpm Grease Maximum, -40 to 350 deg F

Standards

AFBMA Standard

Features

3150 lb dynamic/1785 lb static load

Specifications

Bearing Material:52100 Steel
Bore Diameter:1 in
Cage Material:Steel
Closure Type:Double Seal
Load Capacity:3150 lb
Maximum Speed:7500 rpm Grease
Number of Rows:1
Outside Diameter:2 in
Series:1600 Series
Temperature Rating:-40 to 350 deg F
Width:9/16 in
