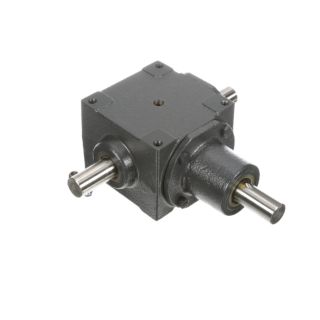

165 1/1.5 A,B ST HUB

Name: 165 1/1.5 A,B ST HUB
Brand: Hub City
SKU: 165 1/1.5 A,B ST HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-00923

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style A B, Series: 165, 1:1.5 Gear Ratio, 8.2 hp, Shaft Input, Shaft Output, 1 in Dia x 2-1/32 in L Input, 5/8 in Dia x 2 in L Output, 1725 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 299 in-lb, 7-5/32 in Centre Distance, 1/4 x 1/8 in Input, 3/16 x 3/32 in Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 10-3/16 in W x 9-23/32 in D x 4-1/8 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	7-5/32 in
Country of Origin:	US
Dimensions:	10-3/16 in W x 9-23/32 in D x 4-1/8 in H
Efficiency:	97.5 %
Gear Ratio:	1:1.5
Horsepower:	8.2 hp
Input Maximum Speed:	1150 rpm
Input Size:	1 in Dia x 2-1/32 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1725 rpm
Output Size:	5/8 in Dia x 2 in L
Output Type:	Shaft
Series:	165
Torque Rating:	299 in-lb
