16528-3 BSF

Name: 16528-3 BSF
Brand: Bussmann
SKU: 16528-3 BSF
Price: 725.63 USD
Availability: OutOfStock

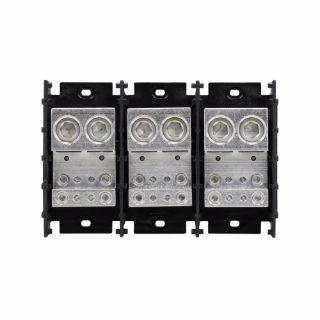

Bussmann 16528-3 Barrier Power Terminal Block, 600 VAC/VDC, 840 A, 3 Poles, 2 AWG to 600 kcmil Wire, Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16528-3

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$725.63

Qty:

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions, and have optional covers to enhance safety (order covers separately).

Bussmann Power Terminal Block, Barrier, Series: 165, 600 VAC/VDC, 840 A, 3 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, 2 AWG to 600 kcmil Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Tin Plated, Black, 8.48 in L x 5.5 in W x 2.94 in H

Application

Power Distribution Applications, Electrical Assemblies, Panels and OEMs Applications

Standards

CE Certified | CSA 6228-01/53787 | RoHS Compliant | UL File No. E221592/1059 | UL Guide XCFR2

Features

2 AWG to 600 kcmil copper/aluminum line, 6 to 3/0 AWG, 14 to 4 AWG copper/aluminum load connection

Specifications

Amperage Rating:	840 A
Color:	Black
Country of Origin:	MX
Dimensions:	8.48 in L x 5.5 in W x 2.93 in H
Finish:	Tin Plated
Material:	Thermoplastic
Number of Poles:	3
Primary Connections/Pole:	2
Secondary Connection/Pole:	2
Series:	165
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	2 AWG to 600 kcmil
