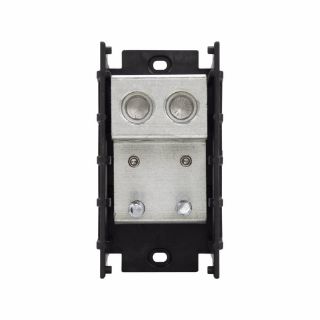

Actual Product May Vary From Image

16541-1 BSF

Name: 16541-1 BSF
Brand: Bussmann
SKU: 16541-1 BSF
Availability: OutOfStock

Bussmann Magnum® 16541-1 Barrier Power Distribution Block, 600 VAC/VDC, 380 A, 1 Pole, 6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load Wire, Aluminum/Thermoplastic

Manufacturer: Bussmann

Manufacturer part number: 16541-1

Availability: Expected Leadtime 69 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Barrier

Description

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and load side port configurations to provide greater flexibility in panel wiring and wire management.

Bussmann Magnum® Power Distribution Block, Barrier, Series: 165, 600 VAC/VDC, 380 A, 1 Pole, 1 Primary Connections/Pole, (21) 1/4 in Quick Connect Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 3.1 in L x 5.5 in W x 2.93 in H

Application

Power Distribution, Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA Class 6228-01/53787/15364 | Guide XCFR2 | UL File No. E221592/1059 | UL94 V-0 Flammability Rating

Features

Rated for dual wire port application to increase the possible number of line side and load side connections
Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
SMD/SMT style mounting

Specifications

Amperage Rating:	380 A
Color:	Black
Country of Origin:	MX
Dimensions:	3.1 in L x 5.5 in W x 2.93 in H
Finish:	Tin Plated
Material:	Aluminum/Thermoplastic
Number of Poles:	1
Primary Connections/Pole:	1
Secondary Connection/Pole:	(21) 1/4 in Quick Connect
Series:	165
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load
