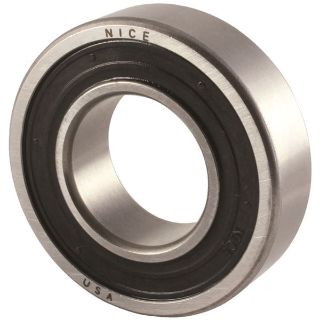

Actual Product May Vary From Image

1654DCTNTG18 RBC

Name: 1654DCTNTG18 RBC
Brand: Roller Bearing Corporation
SKU: 1654DCTNTG18 RBC
Price: 69.70 USD
Availability: InStock

Nice® 1654DCTNTG18 1600® Non-Fill Slot Precision Deep Groove Ball Bearing, 1-1/4 in Dia Bore, 2-1/2 in OD, 1 Rows, 5/8 in W, 2120 lb Load

Manufacturer: Roller Bearing Corporation

Manufacturer part number: 1654DCTNTG18

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$69.70

Qty:

Product Details

Brand Name

Nice®

Type

Non-Fill Slot

Description

Precision ground 1600® Series bearings are specially designed to provide a line of low cost yet high quality bearings for adaptation to a majority of precision bearing applications. They are made in easy to use inch dimensions and are recommended for medium loads and for maximum speeds in the range of 5000 rpm. The 1600® Series bearings are precision ground on all surfaces with exceptional care given to the ball grooves. Careful heat treatment provides a uniform and exact degree of hardness for maximum life. A ball retainer, or separator, is used to increase the range of allowable speeds by reducing ball-to-ball contact friction.

Nice® Precision Deep Groove Ball Bearing, Non-Fill Slot, Series: 1600®, 1-1/4 in Bore, 2-1/2 in OD, 1 Rows, 5/8 in Width, Double Seal Closure, 2120 lb Load, 52100 Steel Bearing, Nylon Cage, 5000 rpm Maximum, -40 to 284 deg F, Chrome Steel

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ABEC-1 | ASPR | CAS | DFAR | FAR Standards

Features

Precision ground on all surfaces and ball grooves for smooth rotation and easy installation
Pregreased with metered Shell Alvania #2 grease
Double sealed to keep grease in and contaminants out
Standard design for maximum application versatility
3864 lb dynamic/2120 lb static

Specifications

Bearing Material:	52100 Steel
Bore Diameter:	1-1/4 in
Cage Material:	Nylon
Closure Type:	Double Seal
Country of Origin:	US
Finish:	Chrome Steel
Load Capacity:	2120 lb
Maximum Speed:	5000 rpm
Number of Rows:	1
Outside Diameter:	2-1/2 in
Series:	1600®
Temperature Rating:	-40 to 284 deg F
Width:	5/8 in
