Actual Product May Vary From Image

16693 LEV

Name: 16693 LEV
Brand: Leviton Manufacturing
SKU: 16693 LEV
Availability: OutOfStock

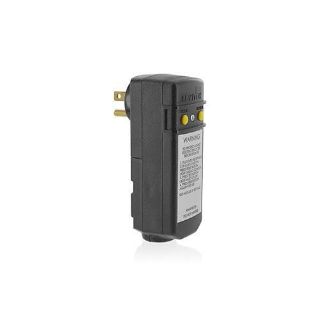

Leviton® 16693 Automatic Reset Compact Grounding Right Angled GFCI Plug, 120 VAC, 15 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16693

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Automatic Reset Compact Grounding Right Angled

Alternate Supplier #

Grainger - 25MG32

Description

Leviton® automatic reset GFCI devices are now sleeker and more rugged than ever And, while these devices are fully OSHA compliant for use on job sites, they are also perfect for use in a variety of temporary power applications, such as recreation vehicles, marine vehicles, portable pools, portable generators, submersible pumps, vending machines and more.

Leviton® GFCI Plug, Automatic Reset Compact Grounding Right Angled, 120 VAC, 15 A, 0.75 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15P, 0.33 to 0.597 in Diameter Cord, -35 to 66 deg C, Blade Terminal, Polycarbonate, Black, 1.729 in L x 1.675 in W x 4.482 in H Dimensions

Application

Commercial and Industrial Applications

Standards

ANSI C73 | CSA C22.2 | LR57811 | NEMA WD-6 | NOM 057

Features

Polycarbonate, ultrasonically welded body provides long service life and excellent resistance to harsh weather
Terminal chamber sealed with silicon and foam rubber gaskets for superior protection against moisture
Accepts 12/3 AWG through 18/3 AWG types SJ and ST cords

Specifications

Amperage Rating:	15 A
Color:	Black
Cord Diameter:	0.33 to 0.597 in
Country of Origin:	CN
Dimensions:	1.729 in L x 1.675 in W x 4.482 in H
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Material:	Polycarbonate
NEMA Rating:	NEMA 5-15P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-35 to 66 deg C
Terminal Type:	Blade
Voltage Rating:	120 VAC
