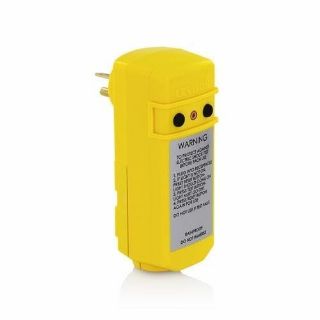

Actual Product May Vary From Image

16794 LEV

Name: 16794 LEV
Brand: Leviton Manufacturing
SKU: 16794 LEV
Availability: OutOfStock

Leviton® 16794 Compact Grounded Manual Reset Portable Right Angle GFCI Plug With Black Test/Reset Button, 120 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16794

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Compact Grounded Manual Reset Portable Right Angle

Description

Portable GFCI devices from Leviton® are now sleeker and more rugged than ever! and while these devices are fully OSHA compliant for use on job sites, they are also perfect for use in a variety of temporary power applications, such as recreation vehicles, marine vehicles, portable pools, portable generators, submersible pumps, vending machines and more.

Leviton® GFCI Plug, Compact Grounded Manual Reset Portable Right Angle, 120 VAC, 20 A, 3/4 hp, 60 Hz Frequency, 2 Poles, 3 Wires, NEMA 5-20P NEMA Rating, Industrial Grade, 0.33 to 0.597 in Diameter Cord, -35 to 66 deg C, Blade Terminal, Polycarbonate, Yellow, 4.482 in H x 1.675 in W x 1.729 in D Dimensions

Application

For variety of temporary power applications, such as recreation vehicles, marine vehicles, portable pools, portable generators, submersible pumps and vending machines

Standards

ANSI C-73 | NOM 057 | UL File No. 943 Class A/498 File No. E48380 | CSA C22.2 42/144 File No. LR57811 | UL94 V-2 Flammability Rating

Features

Polycarbonate, ultrasonically welded body provides long service life and excellent resistance to harsh weather
Terminal chamber sealed with silicon and foam rubber gaskets for superior protection against moisture
Accepts 12/3 AWG through 18/3 AWG types SJ and ST cords
Ground pin down with green LED indicator
Rainproof design with load side wiring chamber
Screw terminals and built-in strain relief cord
Open neutral

Specifications

Amperage Rating:	20 A
Color:	Yellow
Cord Diameter:	0.33 to 0.597 in
Country of Origin:	CN
Dimensions:	4.482 in H x 1.675 in W x 1.729 in D
Frequency Rating:	60 Hz
Grade:	Industrial
Horsepower:	0.75 hp
Material:	Polycarbonate
NEMA Rating:	NEMA 5-15
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-35 to 66 deg C
Terminal Type:	Blade
Voltage Rating:	120 VAC
