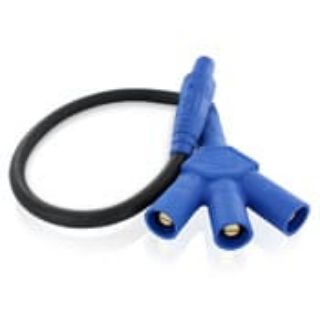

Picture of 16A36-B LEV
Actual Product May Vary From Image

16A36-B LEV

Leviton® Rhino-Hide® 16A36-B 16 Series 3-Fer Cam Type Reverse Soft Taper Nose Adapter Cable Assembly, 600 VAC, 400 A, 4/0 AWG Wire, Female x Male x Male x Male Connection, TPV Housing
Manufacturer: Leviton Manufacturing
Manufacturer part number: 16A36-B
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

3-Fer Cam Type Reverse Soft Taper Nose

Description

Leviton® 16 series single pole cam type device line has been expanded to include a variety of assembled adapters. These cable assemblies, or "Soft Adapters", feature the most common adapter configurations. The entire line of Leviton® 16 series single pole cam type adapter cable assemblies are UL/CSA listed and completely interoperable and interchangeable with any competitive cam type plugs and receptacles.
Leviton® Rhino-Hide® Adapter Cable Assembly, 3-Fer Cam Type Reverse Soft Taper Nose, Series: 16 Series, 600 VAC, 400 A, 4/0 AWG Wire, Female x Male x Male x Male Connection, Brass Contact, TPV Housing Material, Specifications: 1-Pole, NEMA 3R, 24 in L Cable, -40 to 105 deg C, Blue

Application

Indoor and Outdoor Applications

Standards

CSA File No. 152105 | UL File No. E13399

Features

  • Lay flat design provides for safe cable routing
  • Color coded insulators for easy phase identification

Specifications

Amperage Rating:400 A
Color:Blue
Connection Type:Female x Male x Male x Male
Contact Material:Brass
Country of Origin:MX
Housing Material:TPV
Series:16 Series
Specifications:1-Pole, NEMA 3R, 24 in L Cable
Temperature Rating:-40 to 105 deg C
Voltage Rating:600 VAC
Wire Size:4/0 AWG
