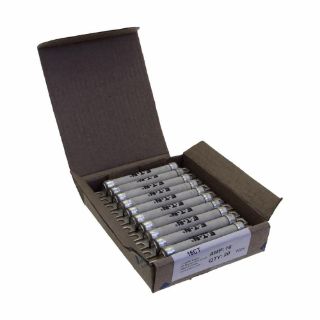

Actual Product May Vary From Image

16CT BSF

Name: 16CT BSF
Brand: Bussmann
SKU: 16CT BSF
Availability: OutOfStock

Bussmann 16CT British Standard High Speed Fuse, 16 A, 690 V, 200 kA Interrupt, Class: AR, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 16CT

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Standard

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Standard, Series: CT Series, Non-Indicating, 16 A, 690 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 74.6 mm L x 8.7 mm H Body

Application

Power Distribution and Control, Electrical Assemblies, Panels and EOEMs, Panel Builders, Aftermarket, Control Panels for Machines, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications

Standards

Features

Excellent cycling capability
Excellent DC performance
Low arc voltage and low energy let-through
BS88 style bolted tags high speed fuse
Low wattage loss
90 kA at 690 VAC, 40 kA at 500 VDC IEC, 200 kA at 700 VAC, 50 kA at 500 VDC UL interrupt rating

Specifications

Amperage Rating:	16 A
Body Size:	74.6 mm L x 8.7 mm H
Body Type:	Cartridge
Class:	AR
Country of Origin:	IN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	CT Series
Terminal Type:	Blade End
Voltage Rating:	690 V
