16D34-G LEV

Name: 16D34-G LEV
Brand: Leviton Manufacturing
SKU: 16D34-G LEV
Availability: OutOfStock

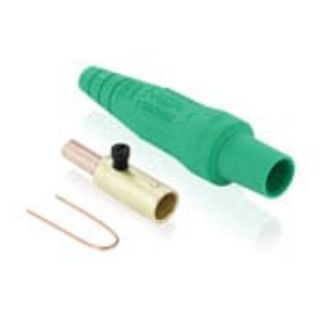

Leviton® 16D34-G ECT Cam Type Detachable Female Taper Nose Single Pole Plug, 600 VAC/VDC, 220 A, 2 to 1 AWG Wire, Crimped Connection, NEMA 3R

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16D34-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

ECT Cam Type Detachable Female Taper Nose

Description

Rhino-Hide® single pole cam type connectors are designed for easy assembly and disassembly without special tools. A thermoplastic screw is used to tightly secure the contact inside the insulating sleeve, making assembly, disassembly and field repairs effortless. The plugs use plastic locking and reinforcement rings molded into insulating sleeves and receptacles ensuring the integrity of the connection. Under severe stress and load conditions, these rings will not melt, break or crack. They are available in 8 standard colors for easy phase identification.

Leviton® Single Pole Plug, ECT Cam Type Detachable Female Taper Nose Type, Series: 16 Series, 600 VAC/VDC, 220 A, 2 to 1 AWG Wire, Crimped Connection, Santoprene TPV Housing Material, NEMA 3R NEMA, Green, 6.88 in L x 1.84 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA 152105 | UL File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Shatter and crack proof high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect
High conductivity positive, vibration proof connection provided by cam design

Specifications

Amperage Rating:	220 A
Color:	Green
Connection Type:	Crimped
Country of Origin:	MX
Dimensions:	6.88 in L x 1.84 in H
Housing Material:	Santoprene TPV
NEMA Rating:	NEMA 3R
Series:	16 Series
Voltage Rating:	600 VAC/VDC
Wire Size:	2 to 1 AWG
