Actual Product May Vary From Image

16H07-660 BSF

Name: 16H07-660 BSF
Brand: Bussmann
SKU: 16H07-660 BSF
Availability: OutOfStock

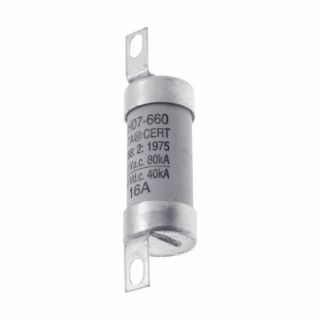

Bussmann 16H07-660 Industrial HRC Fuse Link, 660 VAC, 16 A

Manufacturer: Bussmann

Manufacturer part number: 16H07-660

Availability: Expected Leadtime 41 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Industrial

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann HRC Fuse Link, Industrial, Series: H07-660, 660 VAC, 16 A, Rated Breaking Capacity: 80 kA, Stud Mount, 22 mm Dia x 82.3 mm L

Application

For protection of large industrial installations up to 690 VAC

Standards

BS88-2 | IEC 60269-2

Features

Good peak let-through current limitation
1:1:6 selective co-ordination ratio between "minor" and "major" fuse
GG characteristics for cable protection and general purpose applications
Power loss values well within the limits of IEC 60269-2

Specifications

Amperage Rating:	16 A
Country of Origin:	GB
Dimensions:	22 mm Dia x 82.3 mm L
Mounting Type:	Stud
Rated Breaking Capacity:	80 kA
Series:	H07-660
Voltage Rating:	660 VAC
