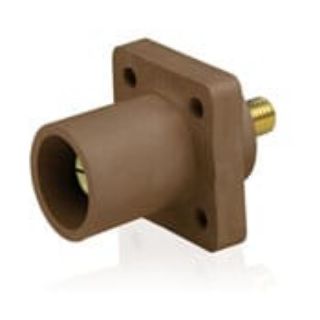

Actual Product May Vary From Image

16R23-H LEV

Name: 16R23-H LEV
Brand: Leviton Manufacturing
SKU: 16R23-H LEV
Availability: OutOfStock

Leviton® 16R23-H 16 Series Insulated Male Single Pole Cam Receptacle With Stud, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R23-H

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Insulated Male

Description

Leviton 16 series taper nose cam-type devices are rated up to 400 A, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Single Pole Cam Receptacle, Insulated Male, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santoprene™ TPV Housing, NEMA 3R, Panel Mount, 3/4 in Stud, Brown, 4-1/2 in L x 2-1/4 in H

Application

Commercial and Industrial Applications

Standards

CSA 152105 | UL File No. E13399

Features

Double cam design provides a high conductivity, positive, vibration proof connection
Santoprene™ TPV insulator is shatter and crack proof
Color coded insulators for easy phase identification
Can be retrofitted to existing locations and power distribution systems
Hard thermoplastic screw provides strength and durability
Tapered nose with 90 deg angled elevation

Specifications

Amperage Rating:	400 A
Color:	Brown
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	4-1/2 in L x 2-1/4 in H
Housing Material:	Santoprene™ TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Specifications:	3/4 in Stud
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
