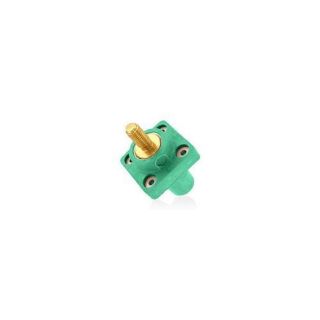

Actual Product May Vary From Image

16R24-11G LEV

Name: 16R24-11G LEV
Brand: Leviton Manufacturing
SKU: 16R24-11G LEV
Availability: OutOfStock

Leviton® 16R24-11G 16 Series 90 deg Female Single Pole Receptacle, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R24-11G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Female

Description

Leviton's 16 Series Taper Nose Cam-Type Devices are rated up to 400-Amp, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Single Pole Receptacle, 90 deg Female, Series: 16 Series, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santoprene TPV Housing, NEMA 3R, Panel Mount, Green

Application

For concerts, sound stages, movie making, television production, sporting events and conventions

Standards

UL File No. E13399 | CSA File No. 152105

Features

Taper nose configuration
Cam type connector
Commercial grade
1-1/8 in female threaded stud

Specifications

Amperage Rating:	400 A
Color:	Green
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Voltage Rating:	600 VAC/VDC
Wire Size:	2 to 4/0 AWG
