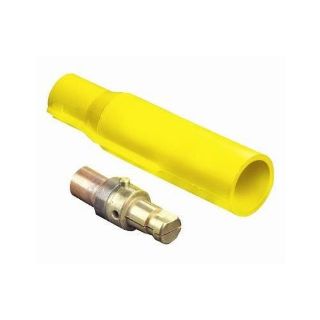

Actual Product May Vary From Image

16V24-TE LEV

Name: 16V24-TE LEV
Brand: Leviton Manufacturing
SKU: 16V24-TE LEV
Availability: OutOfStock

Leviton® 16V24-TE Cam Single Pole Plug, 600 VAC, 400 A, Crimped Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16V24-TE

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cam

Description

Leviton's 16 series taper nose cam-type devices are rated up to 400 A, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Single Pole Plug, Cam, 600 VAC, 400 A, Crimped, Brass Contact, Neoprene Housing, NEMA 3R, Black, 5.87 in L x 1.78 in H

Application

Commercial Applications

Standards

NEMA 3R

Features

Cable Range: #3/0 to 4/0 awg
Insulator Cat. No.: 16VSM-34E
Strain Relief: Copper Wire
Max. Voltage: 600 V
Contact Cat. No.: 16V24-C
Gender: Male
Sleeve Material: Santroprene TPV
Number of Poles: 1

Specifications

Amperage Rating:	400 A
Color:	Black
Connection Type:	Crimped
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	5.87 in L x 1.78 in H
Housing Material:	Neoprene
NEMA Rating:	NEMA 3R
Voltage Rating:	600 VAC
