16V28-B LEV

Name: 16V28-B LEV
Brand: Leviton Manufacturing
SKU: 16V28-B LEV
Availability: OutOfStock

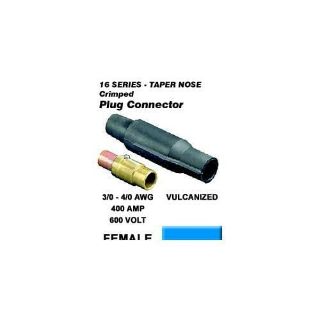

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

16V28-B

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

1-Pole Cam Type Taper Nose Vulcanized

Description

The 16 series taper nose cam type devices are rated up to 400 A, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton®, 16V28-B, Female Plug, 1-Pole Cam Type Taper Nose Vulcanized, Series: 16 Series, 600 VAC, 400 A, 3/0 to 4/0 AWG Wire, Crimped Connection, Brass Contact, Neoprene Housing Material, NEMA 3R NEMA Rating, Threaded Mounting, Specifications: 1-Pole, 86 deg F, Blue, 5.87 in L x 1.78 in H Dimensions

Application

Commercial and Industrial Applications

Standards

UL Listed | CSA Certified

Features

Color-coded for easy phase identification
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof high durometer thermoplastic elastomer (TPV) or neoprene rubber
Self compensating for wear slit in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems
Taper nose configuration
Copper wire strain-relief
Industrial grade plug
NEMA 3R rated (rainproof) for use outdoors

Specifications

Amperage Rating:	400 A
Color:	Blue
Connection Type:	Crimped
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	5.87 in L x 1.78 in H
Housing Material:	Neoprene
Mounting Type:	Threaded
NEMA Rating:	NEMA 3R
Series:	16 Series
Specifications:	1-Pole
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	3/0 to 4/0 AWG
