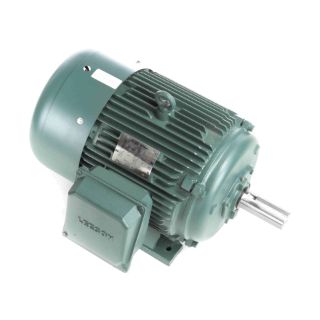

Actual Product May Vary From Image

170003.60 LEE

Name: 170003.60 LEE
Brand: Leeson Electric
SKU: 170003.60 LEE
Price: 5,153.79 USD
Availability: OutOfStock

LEESON® Ultimate e® 170003.60 6-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 25 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 324T Frame, 1190 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 170003.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5,153.79

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, 6-Pole Continuous-Duty, General Purpose AC Motors Application, 25 hp, 208 to 230/460 VAC, 72 to 66/33 A, 60 Hz Frequency, 3 ph ph, 1190 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 324T Frame, 2.13 in Dia x 5.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 29.53 in L x 18.49 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class F insulation system 140 frame and higher
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Ultimate® premium efficient motors

Specifications

Amperage Rating:	72 to 66/33 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	29.53 in L x 18.49 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	324T
Frequency Rating:	60 Hz
Horsepower:	25 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.13 in Dia x 5.25 in L
Speed:	1190 rpm
Temperature Rating:	40 deg C
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
