170M1308 BSF

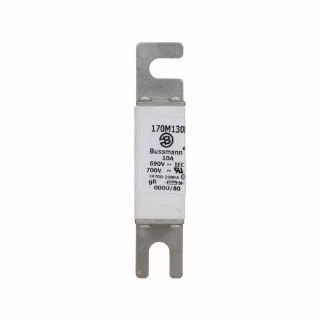

Picture of 170M1308 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M1308
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 52 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$258.46 / EA

Description

Brand Name

Bussmann

Type

High Speed

Description

Bussmann Semiconductor Fuse, High Speed, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 10 A, 200 kA Interrupt, Class: GR, DIN 43 620 Blade Mount, Body Type: Square, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

DC Common Bus, DC Drives, Power Converters and Rectifiers Applications

Standards

IEC Certified | UL Recognized | CE Certified

Features

  • Package Type: Standard
  • Watt Losses: 3 W
  • Clearing (I2T): Clearing at 660V: 25.5
  • Connection Type: Blade End x Blade End
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Length: 5.433 in
  • Pre Arc (I2T): 3.8
  • Height: 2.087 in

Specifications

Amperage Rating:10 A
Body Size:5.433 in L x 0.315 in W x 2.087 in H
Body Type:Square
Class:GR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:DIN 43 620 Blade
Series:170M
