170M1311 BSF

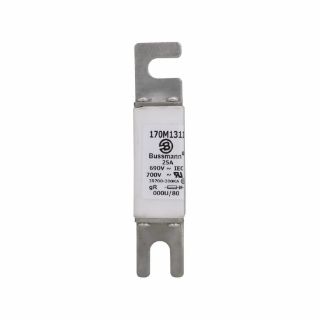

Picture of 170M1311 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M1311
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 53 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$282.16 / EA

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 25 A, 690 V, 200 kA Interrupt, Class: gR, Blade Terminal, Stud Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

9 W power loss

Specifications

Amperage Rating:25 A
Body Size:5.433 in L x 0.315 in W x 2.087 in H
Body Type:Square
Class:gR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:Stud
Terminal Type:Blade
Voltage Rating:690 V
