170M1412 BSF

Name: 170M1412 BSF
Brand: Bussmann
SKU: 170M1412 BSF
Availability: OutOfStock

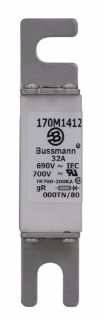

Bussmann 170M1412 Square Body Type TN/80/T High Speed Fuse, 32 A, 690 V, 200 kA Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M1412

Availability: Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type TN/80/T

Description

Bussmann High Speed Fuse, Square Body Type TN/80/T, Series: 170M, Non-Indicating, 32 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Low arc voltage, excellent DC performance, superior cycling capability, designated size 000

Specifications

Amperage Rating:	32 A
Body Size:	100 mm L x 21 mm W x 40 mm H
Body Type:	Square
Class:	gR
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	DIN 43 620
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
