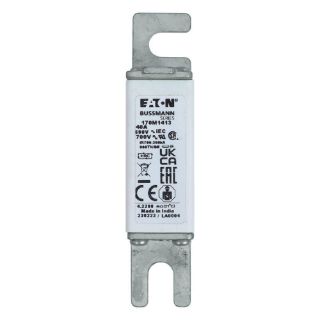

Actual Product May Vary From Image

170M1413 BSF

Name: 170M1413 BSF
Brand: Bussmann
SKU: 170M1413 BSF
Availability: OutOfStock

Bussmann 170M1413 High Speed Fuse, 40 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M1413

Availability: Expected Leadtime 42 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 40 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Blade End x Blade End Terminal, DIN 43 620 Blade Mount, Square Body Type, 100 mm L x 21 mm W x 40 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters and Rectifiers

Standards

Features

12 W power loss
Low arc voltage, excellent DC performance, superior cycling capability, designated size 000

Specifications

Amperage Rating:	40 A
Body Size:	100 mm L x 21 mm W x 40 mm H
Body Type:	Square
Class:	gR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	DIN 43 620 Blade
Terminal Type:	Blade End x Blade End
Voltage Rating:	690 VAC
