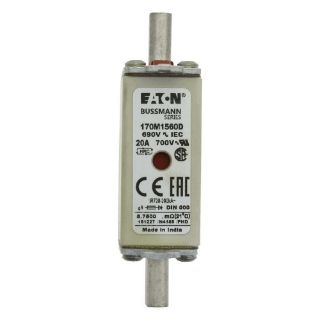

Actual Product May Vary From Image

170M1560D BSF

Name: 170M1560D BSF
Brand: Bussmann
SKU: 170M1560D BSF
Availability: OutOfStock

Bussmann 170M1560D High Speed Fuse, 20 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M1560D

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 20 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Din 43 620 Blade Terminal, DIN 43 620 Blade Mount, Square Body Type, 79 mm L x 21 mm W x 48 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC 60269 | UL Recognized | UL Listed

Features

5 W power loss
Low arc voltage, excellent DC performance, superior cycling capability, designated size 000

Specifications

Amperage Rating:	20 A
Body Size:	79 mm L x 21 mm W x 48 mm H
Body Type:	Square
Class:	gR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	DIN 43 620 Blade
Terminal Type:	Din 43 620 Blade
Voltage Rating:	690 VAC
