170M1571D BSF

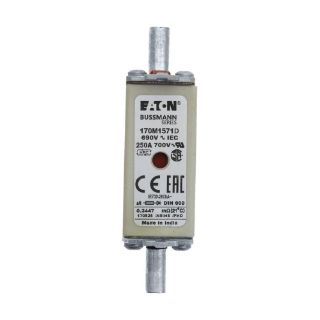

Picture of 170M1571D BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M1571D
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$465.61 / EA

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, 250 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 79 mm L x 21 mm W x 48 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | IEC 60269 | IEC Certified | UL Listed

Features

  • Low arc voltage
  • Excellent DC performance
  • Superior cycling capability
  • Designated size 000

Specifications

Amperage Rating:250 A
Body Size:79 mm L x 21 mm W x 48 mm H
Body Type:Square
Class:aR
Interrupt Rating:200 kA
Mounting Type:DIN 43 620 Blade
Series:170M
Terminal Type:Din 43-620 Blade End
Voltage Rating:690 V
