170M2615 BSF

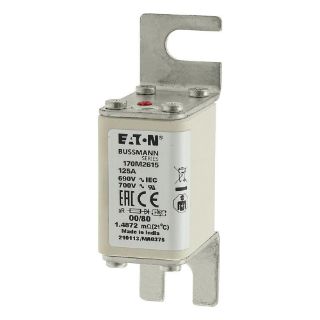

Picture of 170M2615 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M2615
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$475.23 / EA

Description

Brand Name

Bussmann

Type

Square Body Type 80

Description

Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CCC Certified | CE Marking | CSA Class 53787 | CSA Certified File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL Listed File No. E125085 | UL JFHR2

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability

Specifications

Amperage Rating:125 A
Body Size:100 mm L x 30 mm W x 51 mm H
Body Type:Square
Class:aR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Busbar
Series:170M
Terminal Type:Blade End
Voltage Rating:690 V
