170M2670 BSF

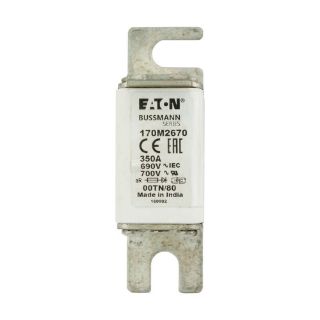

Picture of 170M2670 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M2670
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$685.17 / EA

Description

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 350 A, 690/700 V, 200 kA Interrupt, Class: AR, Blade Terminal, DIN 43 620 Blade Style Mount, Square Body Type, 3.875 in L x 1.125 in W x 2.625 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

60 W power loss

Specifications

Amperage Rating:350 A
Body Size:3.875 in L x 1.125 in W x 2.625 in H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:DIN 43 620 Blade Style
Terminal Type:Blade
Voltage Rating:690/700 V
